Product Details

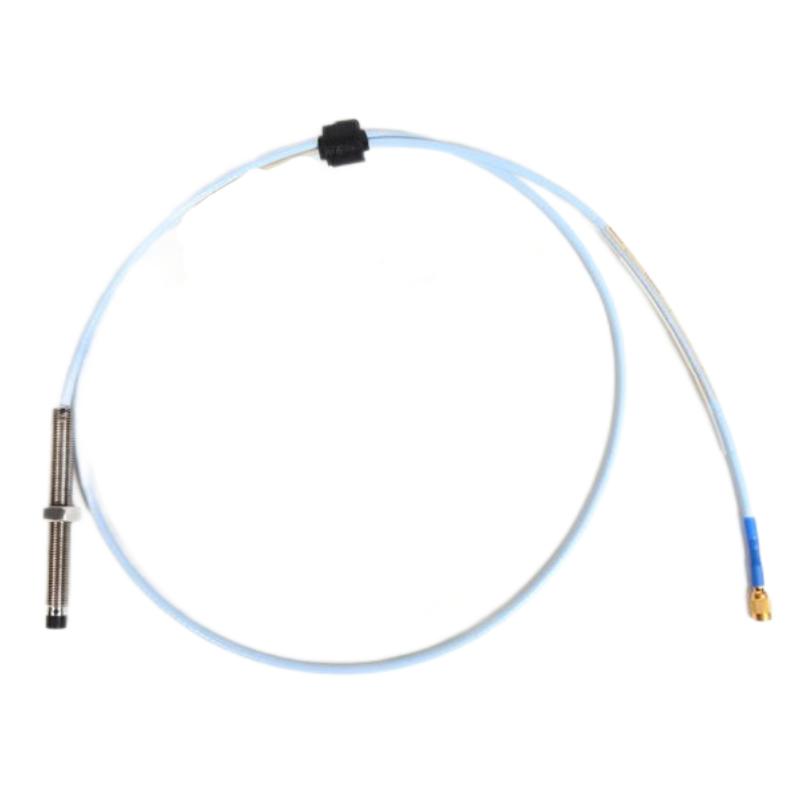

Part Number Breakdown (330101-30-60-90-02-00):
-
330101 – Base: 3300 XL 8 mm probe, 3/8-24 UNF thread, unarmored
-
-30 – Unthreaded length: 3.0 inches
-
-60 – Overall case length: 6.0 inches
-
-90 – Total cable length: 9.0 meters
-
-02 – Connector: Miniature ClickLoc coaxial, standard cable
-
-00 – Agency approval: Not required
Related Product Model Recommendations
Payment & Delivery
FAQs
Q1: What is the primary function of the 330101-30-60-90-02-00?
It is an eddy-current proximity probe used for non-contact measurement of shaft vibration, axial position, and rotational speed on critical rotating machinery. It outputs a voltage proportional to the gap between the probe tip and the shaft surface, enabling real-time condition monitoring and protection.
Q2: What do the part number segments mean for this probe?
-
330101 = 8 mm probe, 3/8-24 UNF thread, unarmored
-
-30 = 3.0 inch unthreaded length
-
-60 = 6.0 inch overall case length
-
-90 = 9.0 meter cable length
-
-02 = ClickLoc connector with standard cable
-
-00 = no agency approvals (general-purpose)
Q3: Which Proximitor sensor is required for this probe?
The total electrical length of the probe plus extension cable must equal the rated system length of the Proximitor. Since this probe has a 9.0 m cable, you must pair it with a 9.0 m Proximitor sensor (e.g., 330180-90-00). Mismatched components can cause measurement errors of 20% or greater.
Q4: What is the recommended installation gap and corresponding voltage?
The optimal gap is 1.27 mm (50 mils), which yields an output voltage of approximately -9.0 VDC at the Proximitor. The linear operating range spans approximately -1 VDC to -17 VDC .
Q5: Is this probe compatible with other 3300 XL system components?
Yes. All 3300 XL 8 mm system components are designed for full interchangeability. Probes, extension cables, and Proximitor sensors can be mixed and matched without bench calibration, provided the total electrical lengths match. They are also backward-compatible with previous 3300 series 5 mm and 8 mm systems.
