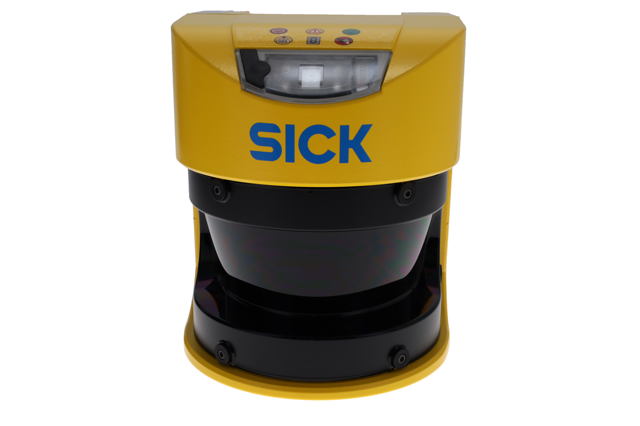

SICK S30A-4011BA 1028934 Safety Laser Scanner

Product Details

Related Product Model Recommendations

Payment & Delivery

FAQs

Q1: What is the primary function of the S30A-4011BA?
It is a safety laser scanner that uses infrared laser beams to scan a 190° area, detecting objects or persons entering its protective field. When an object is detected, the scanner sends a signal via its OSSD outputs to stop hazardous machinery, protecting personnel and equipment .

Q2: What are the safety certifications of this model?
The S30A-4011BA is certified to Type 3 (IEC 61496), SIL2 (IEC 61508), SILCL2 (EN 62061), Category 3 (EN ISO 13849), and Performance Level PL d .

Q3: Can this model be used in vertical applications?
Yes. The S3000 Standard is certified for both horizontal (hazardous area protection) and vertical (access protection) applications. The "Contour as Reference" function enables reliable operation in vertical mode .

Q4: What is the difference between the S3000 Standard and the Advanced/Professional models?
The Standard model has 1 field set (4 fields total) and is the cost-effective solution for simple applications . The Advanced model supports 4 switchable field sets, while the Professional model supports 8 switchable field sets, making them suitable for more complex applications requiring multiple monitoring zones .

Q5: Is the S30A-4011BA still available or has it been replaced?
SICK has announced a generation change: the S3000 series is being replaced by the microScan3 safety laser scanner . The microScan3 offers safeHDDM® scanning technology, a 275° scanning angle, and improved resistance to ambient light and dust. For new installations, the microScan3 is recommended; however, the S30A-4011BA remains available through aftermarket suppliers for existing installations .
