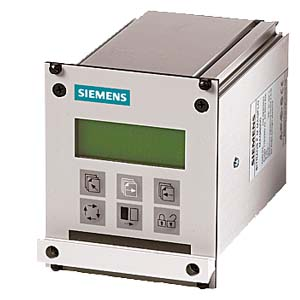

New Siemens 7ME6910-2CA30-1AA0 Electromagnetic Flow Transmitter

Product Details

Related Product Model Recommendations

Payment & Delivery

FAQs

Q1: What is the primary function of the 7ME6910-2CA30-1AA0?
It is a flow transmitter that processes signals from electromagnetic flow sensors (MAG 1100/3100/5100 W) and converts them into standard output signals (0–20 mA, frequency, relay) for flow rate monitoring, totalization, and process control .

Q2: What is the difference between the MAG 5000 and MAG 6000?
The MAG 5000 offers ±0.4% accuracy and is a cost-effective solution for standard applications. The MAG 6000 provides higher accuracy (±0.2%) and additional communication options including PROFIBUS PA/DP and FOUNDATION Fieldbus .

Q3: What power supply options are available for this model?
This specific model (7ME6910-2CA30-1AA0) supports 11–30 V DC or 11–24 V AC at 50/60 Hz. The -2CA10- variant supports 115–230 V AC for AC-powered installations .

Q4: Does this transmitter include a display?
Yes. The "1AA0" suffix indicates an integral display with local configuration capability. The 3-line, 20-character alphanumeric display shows flow rate, totalizer values, and configuration parameters .

Q5: Is this product still active or discontinued?
The 7ME6910-2CA30-1AA0 is listed as an Active Product (PM300) by Siemens.
