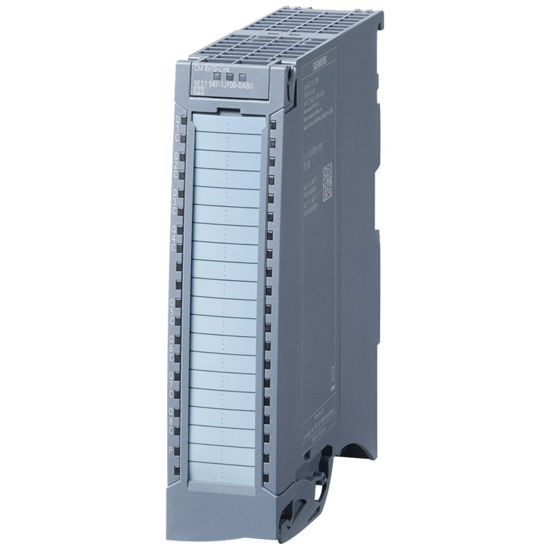

New Siemens 6ES7547-1JF00-0AB0 Communication Module in Stock

Product Details

Note: Front connector (screw terminals or Push-In) must be ordered separately .

Related Product Model Recommendations

Payment & Delivery

FAQs

Q1: What is the primary function of the 6ES7547-1JF00-0AB0?

It is an IO-Link Master communication module for the SIMATIC S7-1500 and ET 200MP systems. It enables the controller to communicate with up to 8 IO-Link devices simultaneously, acting as the master in an IO-Link network. This allows seamless integration of intelligent sensors and actuators into the automation system .

Q2: What IO-Link protocol versions does this module support?

The module supports both IO-Link protocol V1.0 and V1.1. This ensures compatibility with a wide range of IO-Link devices, including newer devices that require V1.1 features .

Q3: What is the maximum cable length for IO-Link devices connected to this module?

The maximum cable length for unshielded IO-Link cables is 20 meters. This is standard for IO-Link technology and sufficient for most field device connections .

Q4: Does this module require a separate front connector?

Yes. The front connector (screw terminals or Push-In type) must be ordered separately. It is not included with the module .

Q5: What software is required to configure this module?

The module is configured using STEP 7 TIA Portal V15.1 with HSP 274 (Hardware Support Package). Alternatively, it can be configured via a GSD file for non-Siemens systems.
