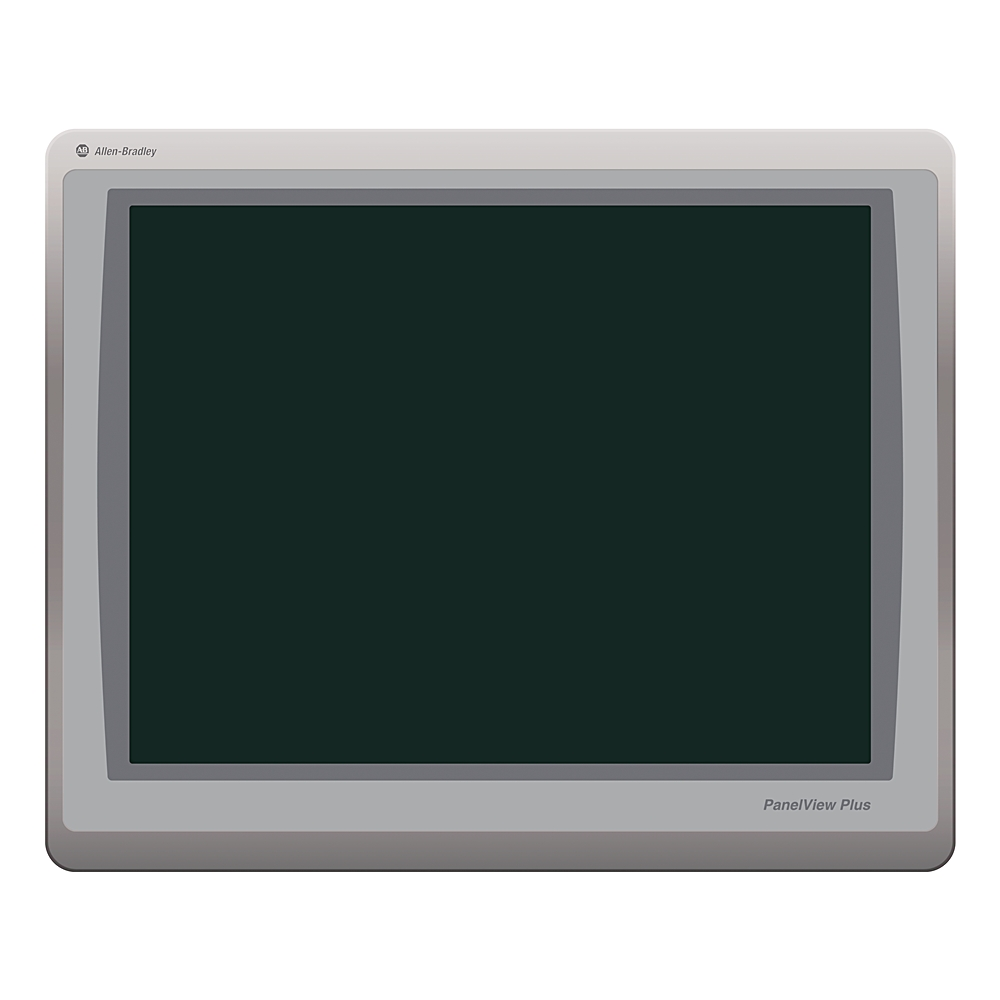

New Allen Bradley 2711P-T15C22D9P PanelView Plus 7 HMI Touch Terminal

Product Details

Related Product Model Recommendations

Payment & Delivery

FAQs

Q1: What software is required to configure the 2711P-T15C22D9P?

The terminal is configured using FactoryTalk View Machine Edition (ME) software. It also supports FactoryTalk ViewPoint for web-based remote access and VNC for remote monitoring .

Q2: Does this terminal support network redundancy?

Yes. The 2711P-T15C22D9P features dual Ethernet ports that support Device-Level Ring (DLR) topology, linear, and star topologies. DLR provides network redundancy, ensuring communication continues even if one network path fails .

Q3: What is the difference between the Performance model and the Standard model?

The Performance model (this terminal) runs Windows CE 6.0 with Extended Features, includes 512 MB user memory, supports remote monitoring (VNC, FactoryTalk ViewPoint), and offers DLR network redundancy. The Standard model has fewer features and lower memory capacity .

Q4: Can I expand the memory or storage on this terminal?

Yes. The terminal includes an SD card slot that supports Allen-Bradley 1784-SDx and 1784-SDHCx cards for external storage. It also has three USB host ports for connecting external flash drives .

Q5: What is the panel cutout size for mounting this terminal?

The required panel cutout dimensions are 290 mm (H) x 353 mm (W) or 11.42 in (H) x 13.90 in (W). The terminal front dimensions are 318 mm (H) x 381 mm (W) x 69.6 mm (D) .
